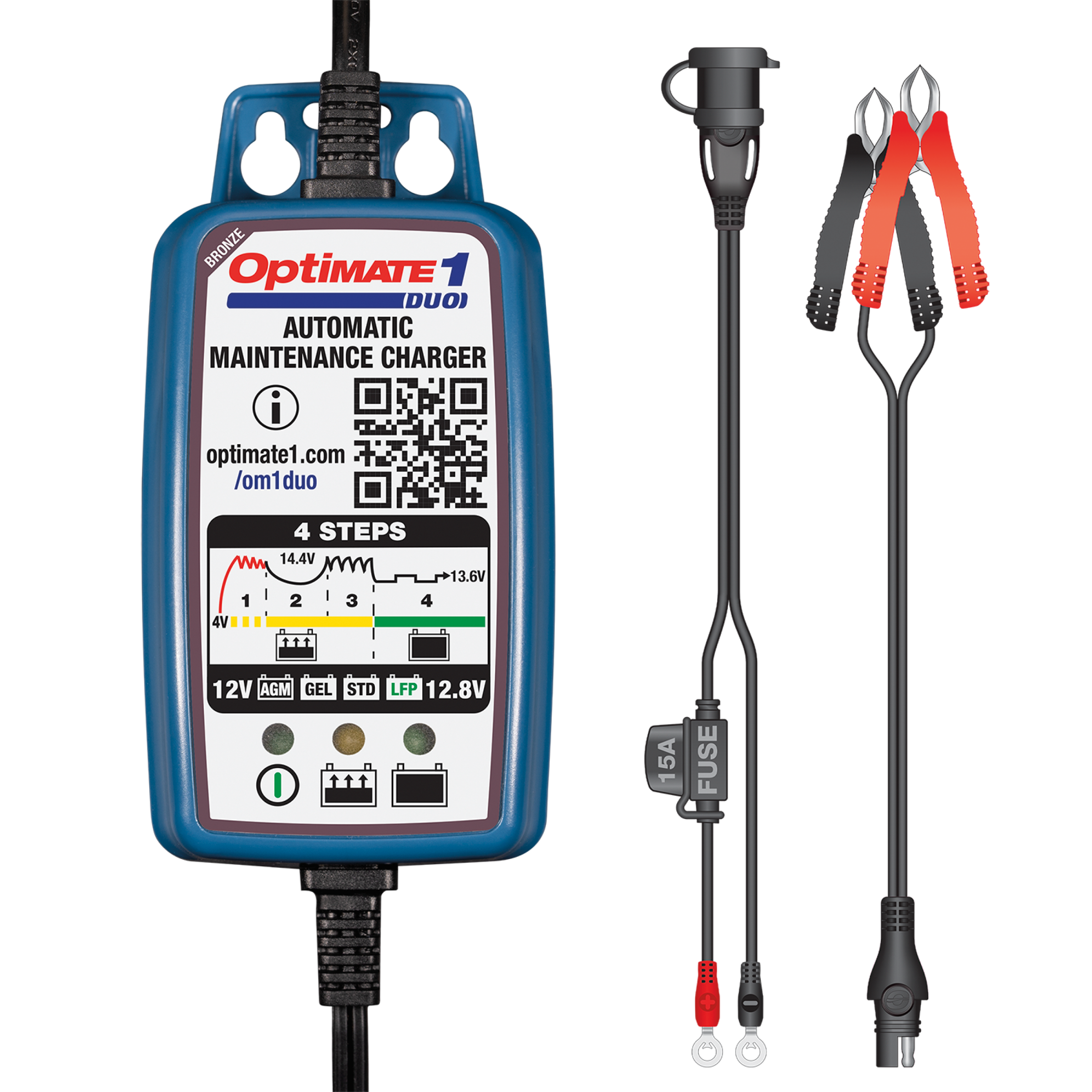

Optimate Charger 1 DUO 12V 0.6A TM402-D

Optimate Charger 1 DUO 12V 0.6A TM402-D

OptiMate 1 DUO – the smart “plug and forget” charger for modern powersport batteries.
This compact 4-stage 12V/12.8V charging and maintenance device automatically detects whether a lead-acid (STD, AGM, GEL) or lithium LiFePO4 battery is connected and precisely adjusts the charging parameters for maximum battery life and reliability.

Ideal for motorcycles, scooters, ATVs/quads, jet skis, or other vehicles that are used infrequently or seasonally, the OptiMate maintenance program gives your battery exactly what it needs—never too much, never too little, without constant monitoring. With 0.6 A constant current, fully automatic 24/7 long-term maintenance, low-voltage start from 4 V, and integrated overcharge protection, your battery stays in top condition, while vehicle electronics and battery are optimally protected thanks to spark-suppressed, safe charging technology.

Features and technical specifications:

    Suitable battery types: 12V lead-acid (STD, AGM, GEL) and 12.8 lithium (LiFePO4 / LFP) starter and cycle batteries
    Recommended battery capacity: approx. 2–30 Ah
Charging current: 0.6 A constant current
Charging voltages: nominal 12 V and 12.8 V, operating range approx. 4–14.4 V
Charging program: 4-stage, fully automatic operation with 24/7 trickle charging
    Rescue function: low-voltage start from approx. 4 V (desulfation/revival)
    Area of application: preferably indoors, lowest ambient temperature approx. -20 °C
    Input: 100–240 V AC, 50–60 Hz, highly efficient, fully encapsulated
    Safety: reverse polarity and short-circuit protection, spark suppression, no overcharging, automatic shutdown when battery is disconnected, suitable for vehicle electronics
    Housing: IP50 - dustproof. Can still be used at -20°C.
    Cable lengths: Mains and charging cables approx. 1.8 m each with SAE plug
    Dimensions: Height x width x depth: approx. 65 x 162 x 176 mm
    Weight: approx. 720 g

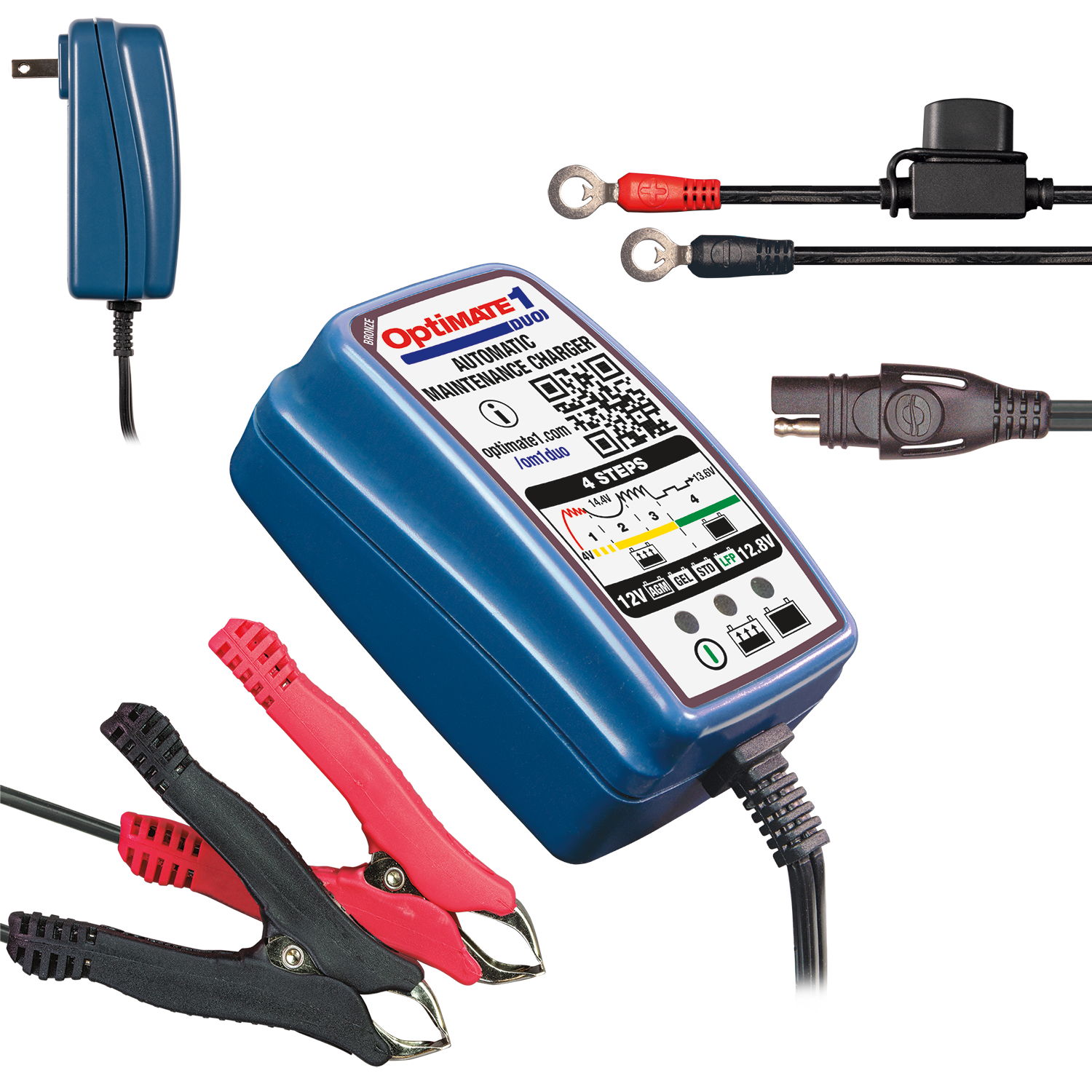

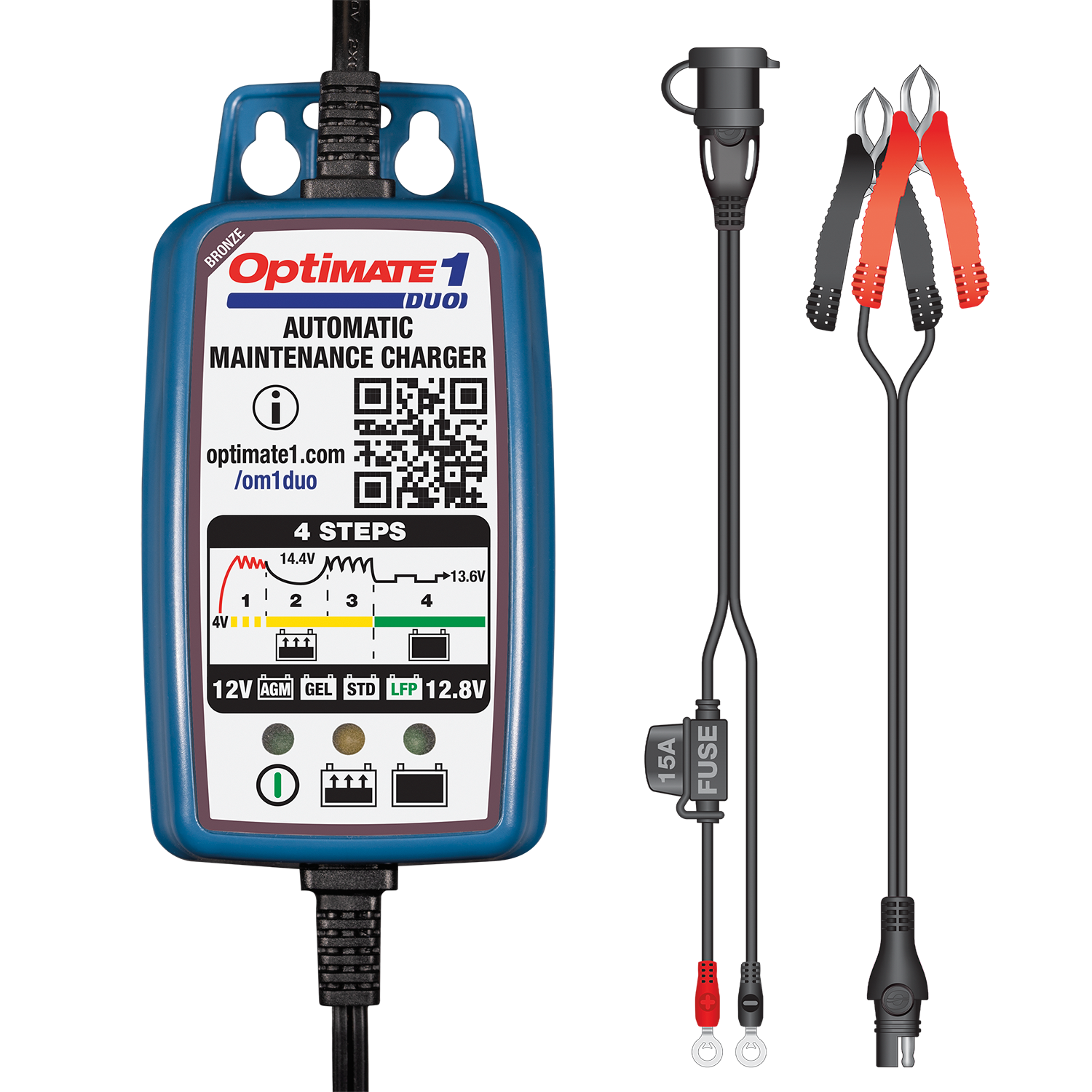

Scope of delivery:

    OptiMate 1 DUO charger (plug-in device with fixed mains cable).
    Battery cable for permanently installed batteries with SAE connection (ring terminal plug-in cable, weatherproof).
    Alligator clips / small battery clip set with SAE connection.
    Wall mount or mounting option on the housing.
    Operating instructions
